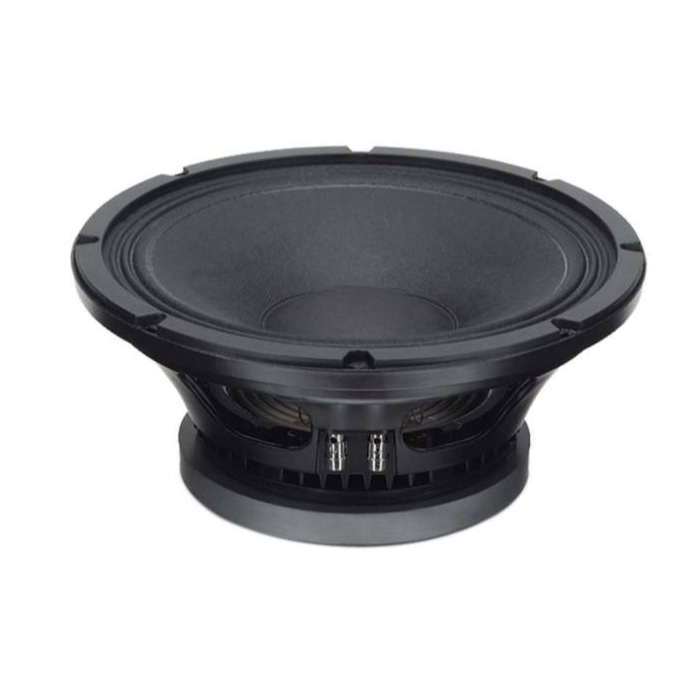

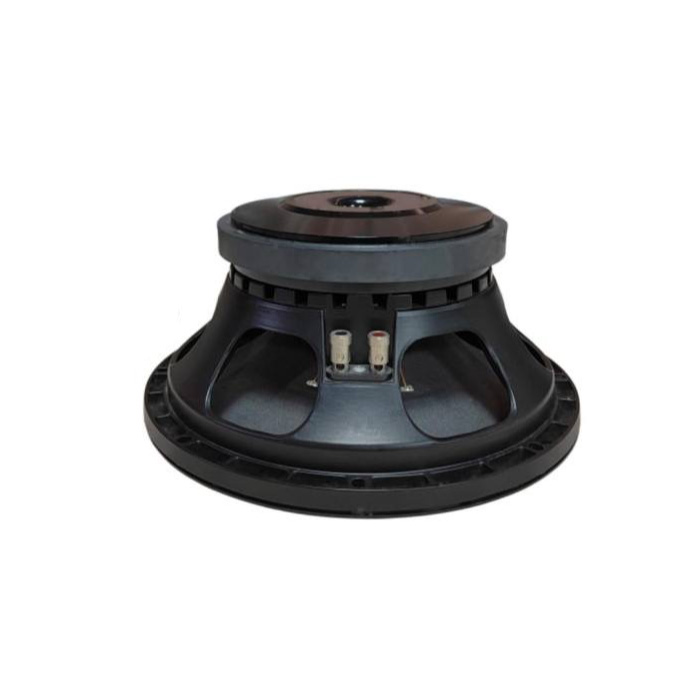

| Nominal diameter | 12"/305mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 400 W |
| Power rating | 800 W |
| Sensitivity | 97dB |
| Frequency range | 46-2500 Hz |
| Maqnet Size | 200mm |
| Voice coil diametel | 75mm/3 inch |
| Coil material | PICCAW |
| Number of layers | 2L(Inside/Outside) |
| X-max | 6.8mm |
| Fs | 46 HZ |
| Qts | 0.22 |
| VAS | 84.3 L |
| Bl | 18.3 Tm |
| Net Weight | 8.3 kg/pc |
