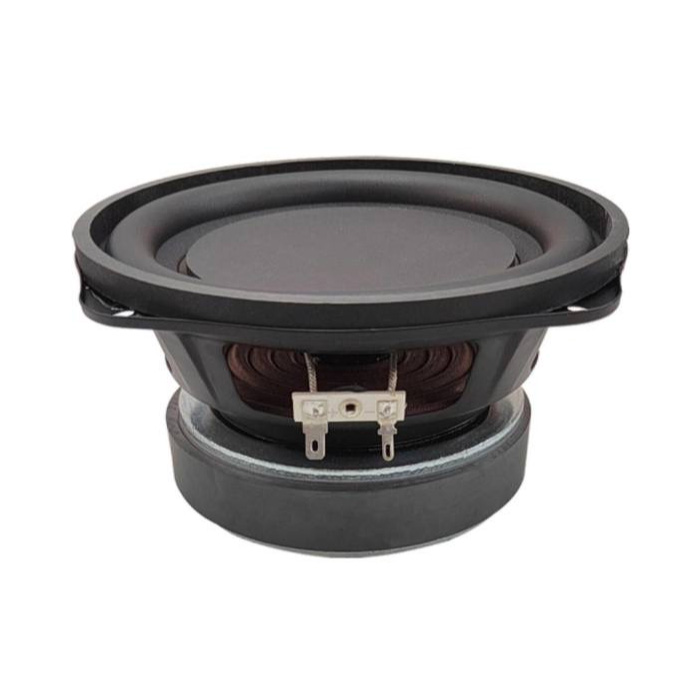

| Nominal diameter | 6.5"/177mm |
| Magnet type | Ferrite |
| Impedance | 4Ω |
| AES Power | 100 W |
| Power rating | 200 W |
| Sensitivity | 86dB |
| Frequency range | 39-1000 Hz |
| Maqnet Size | 120mm |
| Voice coil diametel | 25mm/1 inch |
| Coil material | EISWW |
| Number of layers | 4L(Outside) |
| X-max | 5.1mm |
| Fs | 39 HZ |
| Qts | 0.37 |
| VAS | 9.58 L |
| Bl | 9.07 Tm |
| Net Weight | 2 kg/pc |
