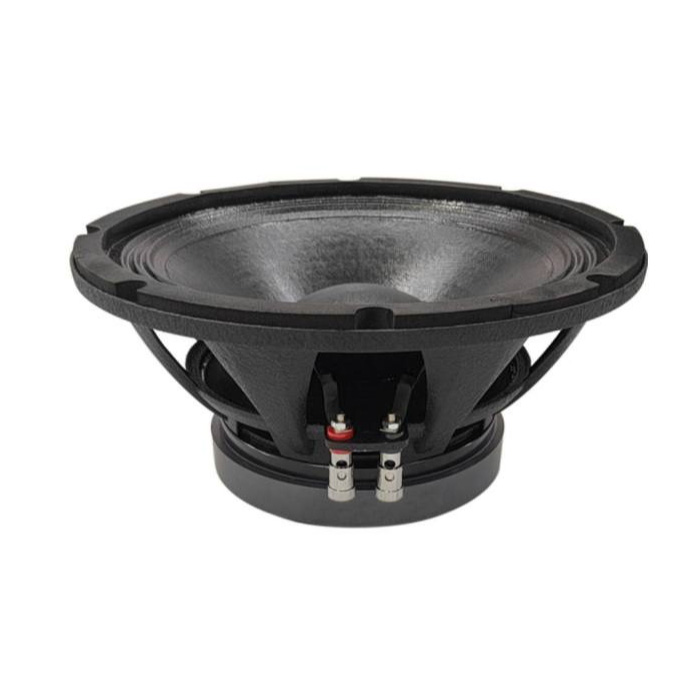

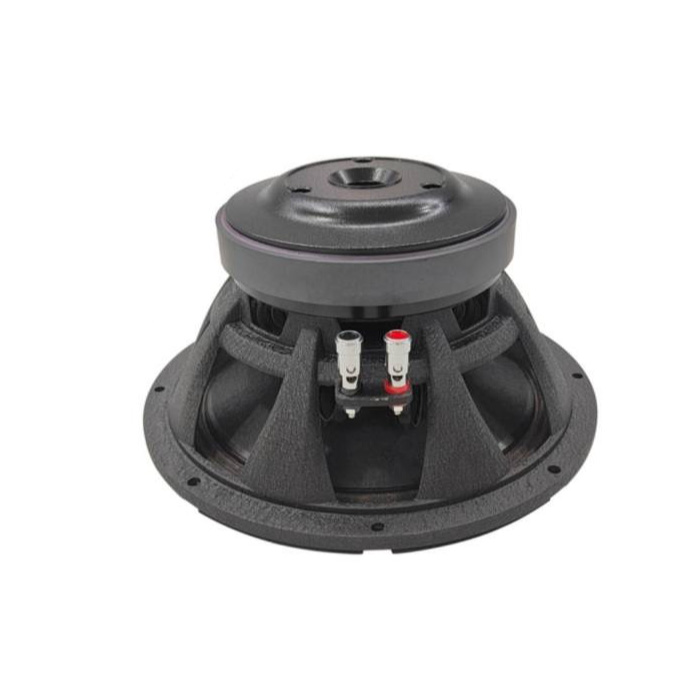

| Nominal diameter | 10"/254mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 350 W |
| Power rating | 700 W |
| Sensitivity | 95dB |
| Frequency range | 59-2300 Hz |
| Maqnet Size | 156mm |
| Voice coil diametel | 65mm/2.5 inch |
| Coil material | PICCAW |
| Number of layers | 4L(Outside) |
| X-max | 10mm |
| Fs | 59 HZ |
| Qts | 0.48 |
| VAS | 26 L |
| Bl | 13.6 Tm |
| Net Weight | 4.55 kg/pc |
