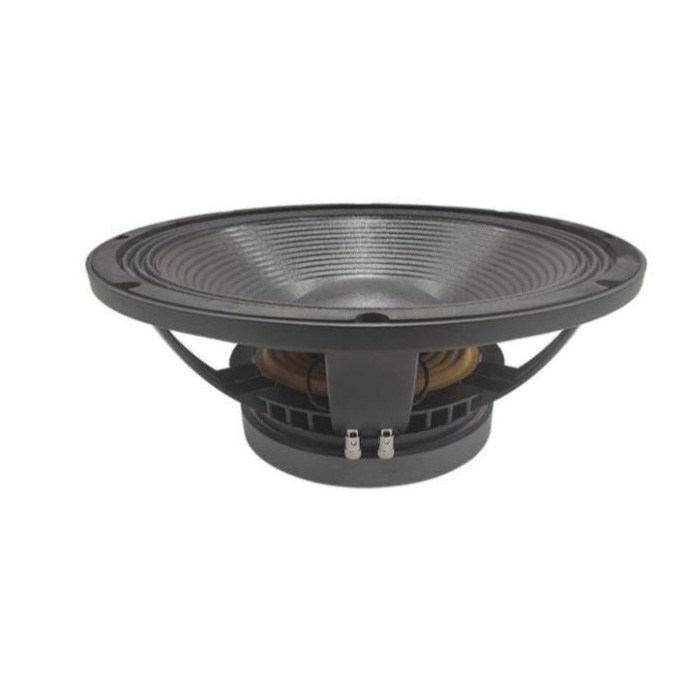

| Nominal diameter | 15"/380mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 800 W |
| Power rating | 1600 W |
| Sensitivity | 96.5dB |
| Frequency range | 42-1500 Hz |
| Maqnet Size | 220mm |
| Voice coil diametel | 100mm/4 inch |
| Coil material | PISV-W |
| Number of layers | 2L(lnside/Outside) |
| X-max | 11mm |
| Fs | 42 HZ |
| Qts | 0.28 |
| VAS | 105 L |
| Bl | 22.8 Tm |
| Net Weight | 11.8 kg/pc |
