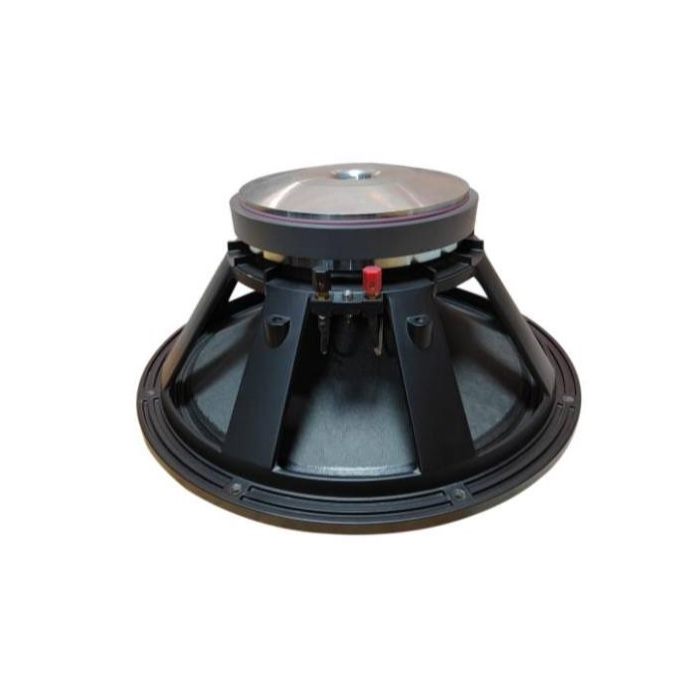

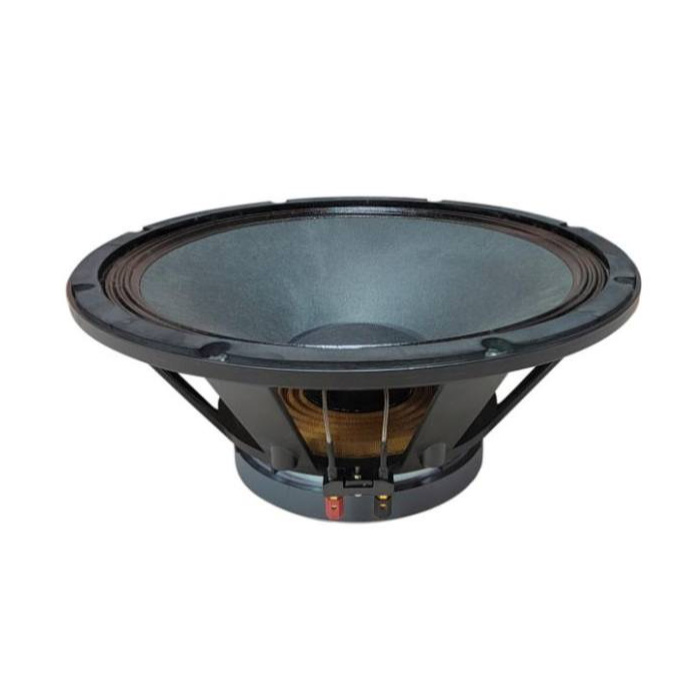

| Nominal diameter | 15"/381mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 500 W |
| Power rating | 1000 W |
| Sensitivity | 98dB |
| Frequency range | 39-2000 Hz |
| Maqnet Size | 190mm |
| Voice coil diametel | 75mm/3 inch |
| Coil material | PISVW |
| Number of layers | 2L(Inside/Outside) |
| X-max | 7.3mm |
| Fs | 39 HZ |
| Qts | 0.34 |
| VAS | 161 L |
| Bl | 19.6 Tm |
| Net Weight | 7.6 kg/pc |
