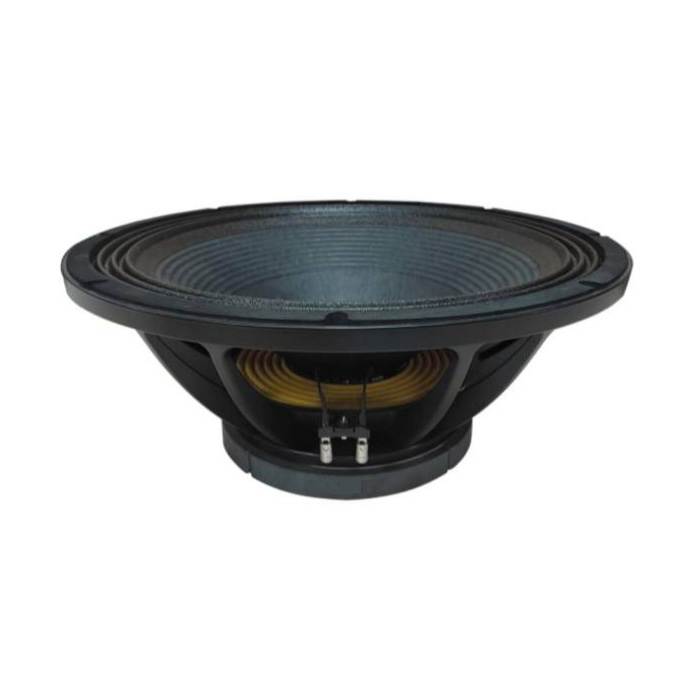

| Nominal diameter | 21"/535mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 1400 W |
| Power rating | 2800 W |
| Sensitivity | 98dB |
| Frequency range | 31-2500 Hz |
| Maqnet Size | 280mm |
| Voice coil diametel | 125mm/5 inch |
| Coil material | PISVW |
| Number of layers | 2L(Inside/Outside) |
| X-max | 12mm |
| Fs | 31 HZ |
| Qts | 0.4 |
| VAS | 292 L |
| Bl | 29.4 Tm |
| Net Weight | 20.05 kg/pc |
