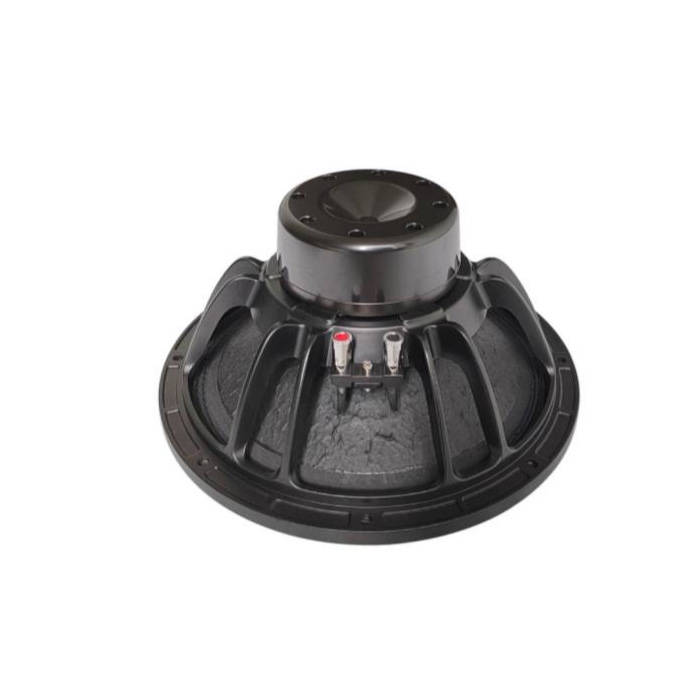

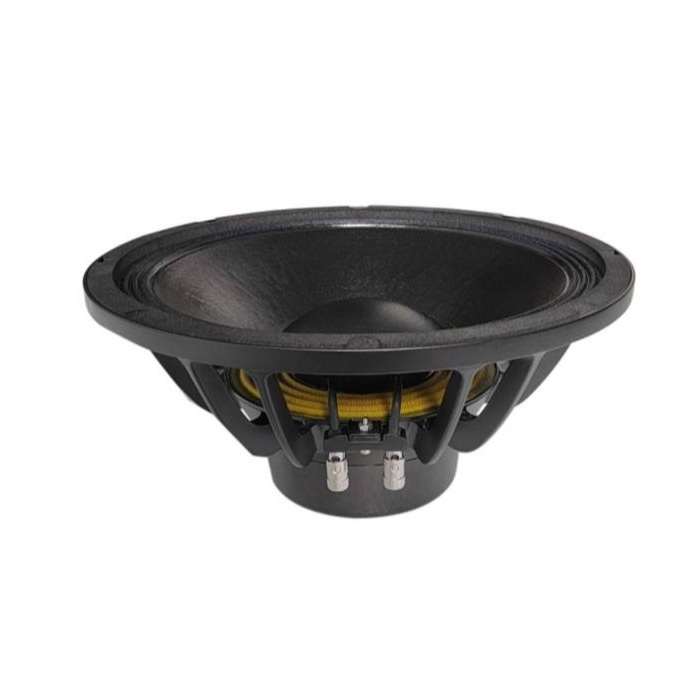

| Nominal diameter | 12"/310mm |
| Magnet type | Neodymium |
| Impedance | 8Ω |
| AES Power | 600 W |
| Power rating | 1200 W |
| Sensitivity | 98dB |
| Frequency range | 52-2000 Hz |
| Maqnet Size | 84mm |
| Voice coil diametel | 86mm/3.5 inch |
| Coil material | PICCAW |
| Number of layers | 2L(Inside/Outside) |
| X-max | 7.3mm |
| Fs | 52 HZ |
| Qts | 0.48 |
| VAS | 46.8 L |
| Bl | 18.8 Tm |
| Net Weight | 5.0 kg/pc |
