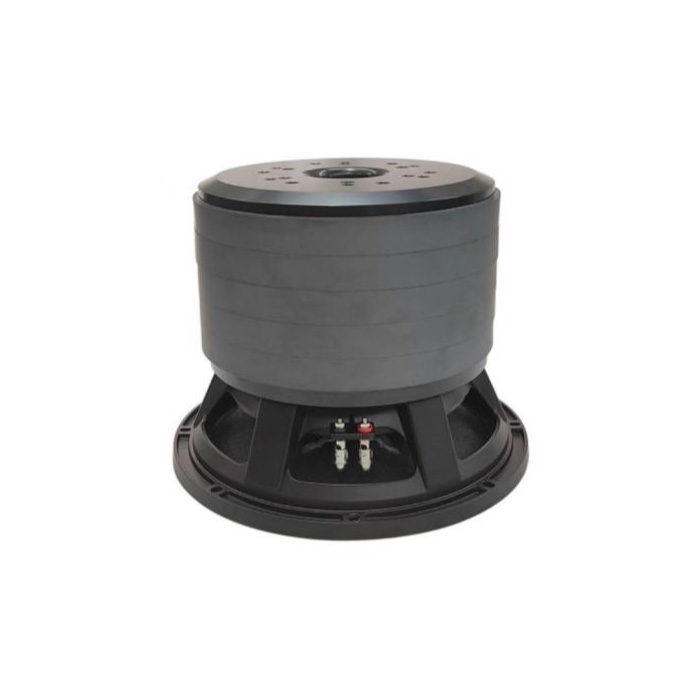

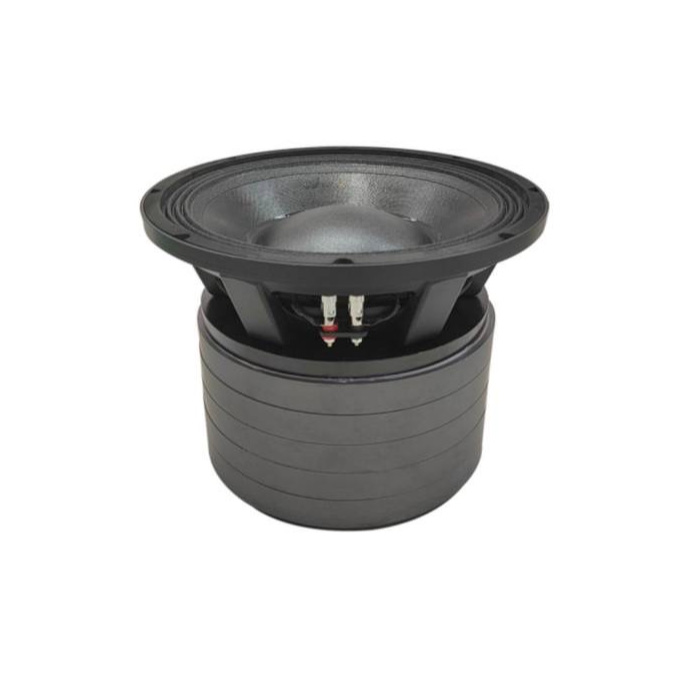

| Nominal diameter | 12"/310mm |
| Magnet type | Ferrite |
| Impedance | 8Ω |
| AES Power | 1500 W |
| Power rating | 3000 W |
| Sensitivity | 93dB |
| Frequency range | 60-1000 Hz |
| Maqnet Size | 250mm-5 |
| Voice coil diametel | 125mm/5 inch |
| Coil material | PISV |
| Number of layers | 2L(Inside/Outside) |
| X-max | 14mm |
| Fs | 60 HZ |
| Qts | 0.51 |
| VAS | 15 L |
| Bl | 28.1 Tm |
| Net Weight | 35 kg/pc |
