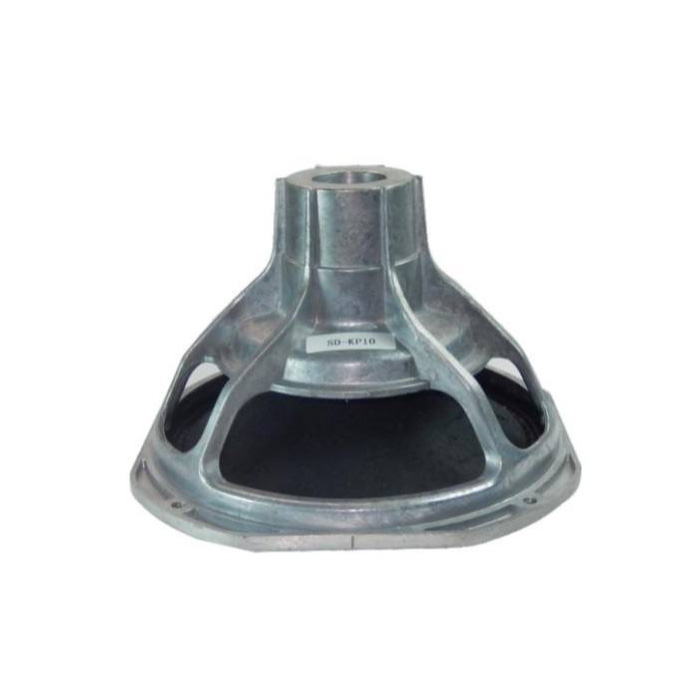

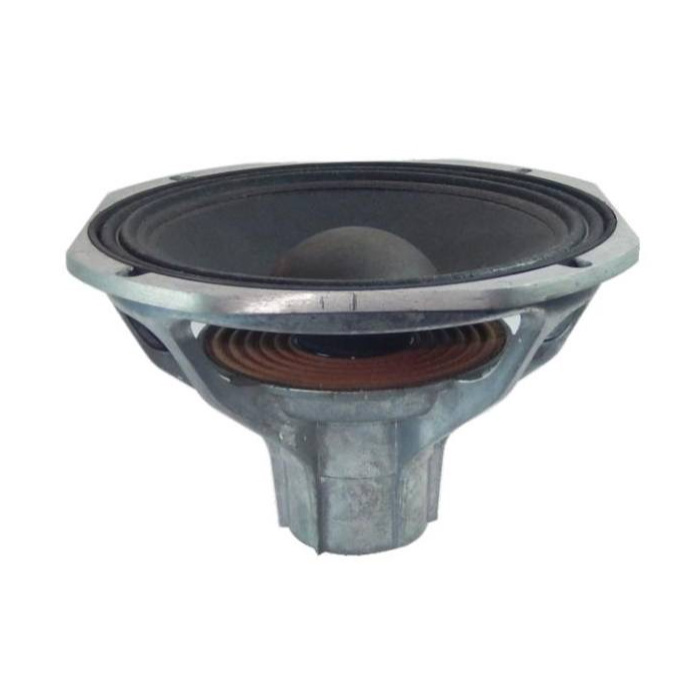

| Nominal diameter | 10"/254mm |
| Magnet type | Neodymium |
| Impedance | 8Ω |
| AES Power | 200 W |
| Power rating | 400 W |
| Sensitivity | 96dB |
| Frequency range | 62-3000 Hz |
| Maqnet Size | 48mm |
| Voice coil diametel | 51mm/2 inch |
| Coil material | PIAL |
| Number of layers | 1L(Outside)*2 |
| X-max | 7mm |
| Fs | 71 HZ |
| Qts | 0.47 |
| VAS | 20.9 L |
| Bl | 13.9 Tm |
| Net Weight | 1.55 kg/pc |
